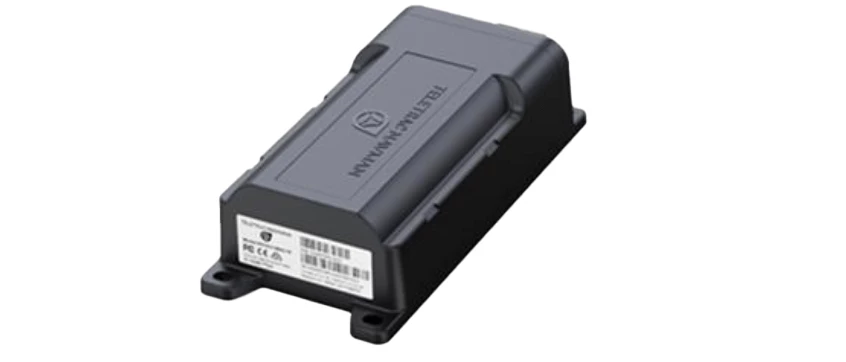

RE200
Asset Tracking and Management for All-Weather Assets
The RE200 provides an AI-powered fleet management solution that captures real-time data from your assets, ranging from yellow iron to heavy duty machinery. With the ability to collect key data from sources like GPS, GPIO, CAN bus, engine data, and more, the RE200 allows you to measure key performance metrics directly from your equipment. Through tracking, insights, and analytics, you can instantly access the information and easily view the current status of your equipment through alerts and customized reports.
RE200 Features and Benefits
Powering Insights Through Data Capture and AI
Turning Data into Decisions
RE200 captures key data from your operators and equipment, including engine hours, harsh usage metrics and maintenance information, and delivers the data into insights for your business to increase efficiency, sustainability and profitability.
- Get second-by-second tracking for real-time equipment and engine status updates
- Capture safety events such as harsh acceleration, braking and cornering, via the gyroscope and accelerometer
- Helps to keep track of asset maintenance
Powering Insights
The RE200 has been designed to capture the information that you need to make informed decisions about your assets. With a wide range of capabilities the RE200 provides insights that will help you:
- Monitor your assets in real-time and create a comprehensive picture of your schedule to maximize asset uptime
- Identify opportunities to improve efficiency with real-time performance data and trend reporting.
- Improve safety by monitoring driver behavior and rewarding team members for operating vehicles and equipment safely.
High Definition Data
The RE200 captures high definition data from your equipment ranging from fuel consumption to engine fault codes that enables you to:
- Cut fuel cost by reducing unnecessary engine idling and improving driver behavior
- Limit long periods of downtime by quickly acting on engine fault codes
- Maintain an accurate log of completed maintenance and monitor ownership cost.
Technical Specifications
See why this device is right for you
Tracking: Second-by-second data
Firmware Updates: Over-the-air
Installation: Self-install or Professional 3-wire install through Teletrac Navman’s installation team
Certifications: NA: FCC Part 15 Class B, IC, NOM. UK/EU: CE, REACH, WEEE, ROHS. ANZ: RCM
Ratings: IP67
Size: 41mm high, 73mm wide, 130mm length
Weight: 300g
Geofences: Server Side
Antenna: Internal
GNSS: M8030 (GPS, GLONASS, BeiDou and Gallileo)
Modem: EGPRS Quad Band (850/900/1800/1900); Cat. M1 / Cat. NB1: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
Accelerometers: 6-Axis
HD Data: Yes
CAN: 2.0 / J1939
Magnetometer: Yes
Accelerometer + Gyroscope: Yes
1 Wire Communication: Yes
Safety IC: Yes
Charger IC: Yes
Digital Inputs: 2 (6 ~ 48V DC)
Digital Outputs: 2
Ignition Detection: Yes
LEDs: 1 multicolored
SIM card: 2FF or M2FF
Battery: 6.2Ah
