Battery-Powered Asset Tracking
Increase connectivity with your assets

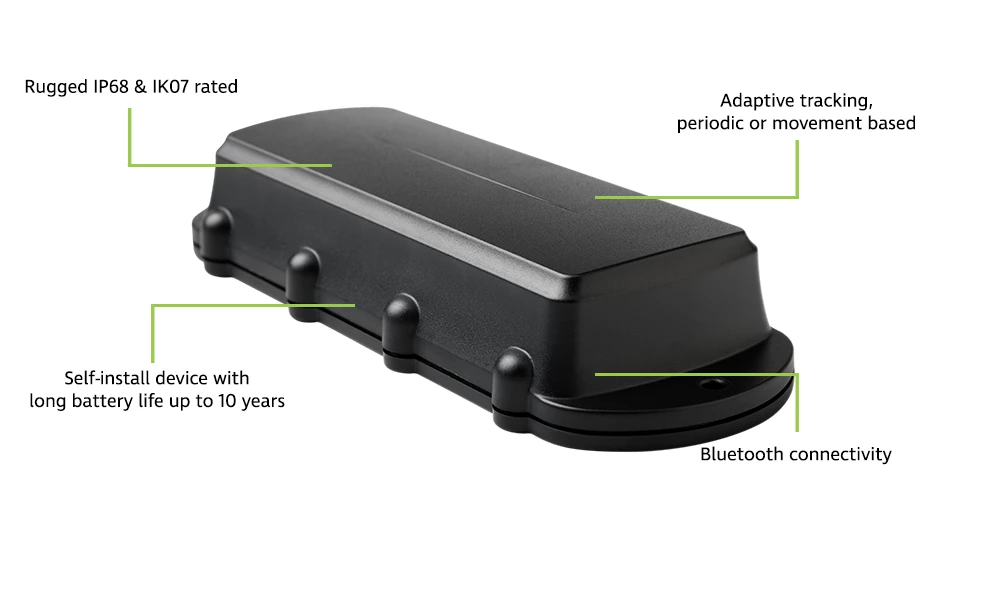

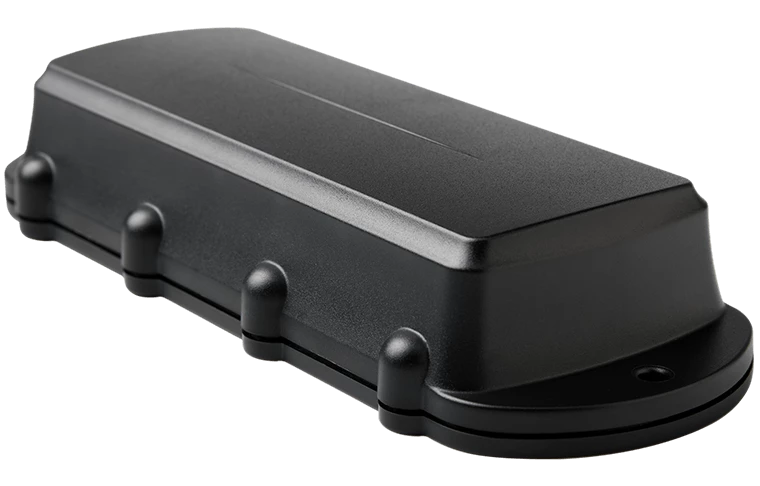

Teletrac Navman’s AT551 is a GPS-enabled telematics device with Bluetooth® functionality, designed to track powered and unpowered assets. Its compact footprint, rugged design, and extended battery life ensure reliable asset monitoring and connected sensor data capture throughout the day or whenever movement occurs.
The AT551 is easy to self-install and uses modern +4G networks to instantly connect to the TN360 platform, giving you the visibility to simplify asset management. The flexible device allows you to configure update triggers including stationary-to-move, move-to-stationary or timed modes, and in the event of a theft you can activate ‘Recovery Mode’ to assist in asset recovery. With replaceable batteries, the AT551 remains cost-effective over time without needing to buy a new tracker.
With the AT551 you will enhance visibility into asset location and usage, so you can improve utilization across projects and sites, reducing hire costs and project delays. The TN360 platform also includes digital maintenance and inspection applications so you can streamline maintenance programs and save time locating and maintaining equipment.
AT551 Features and Benefits
Extended battery life and Bluetooth enabled to keep you fully connected to your assets
- Smart tracking of powered or unpowered assets - see your entire fleet in one system.
- Dual 4G LTE-M1 and NB-IoT network communication capabilities make it reliable and future-proof.
- Bluetooth® functionality, ideal for keeping track of powered or unpowered assets.
- Extended battery life for each device across the fleet depending on the set reporting period.
- Get alerts when batteries are running low or at critical level.
- Batteries can be easily replaced extending the lifespan of the tracking device.
- Ability to easily self-install across your fleet, with a range of installation options.
- Receive alerts on equipment events such as movement from sites after hours indicating potential theft.
- Improve on maintenance and scheduling requirements for your assets to reduce wear & tear and reduce unexpected downtime.
- Rugged and waterproof IP68 and IK07 rated housing offers a discrete and highly durable form-factor that suits a wide range of asset types and sizes.
- Define yards and job sites through geofences and report on equipment location, activity, and utilization by site.
Long Battery Life
Optimized battery performance giving you years of battery life
Ruggedized Device
IP68 / IK07 rated and built to withstand tough environments
Adaptive Tracking
Flexible update rates based on movement or scheduled updates
Bluetooth® 5.2 Gateway
Wireless sensor connectivity through BLE sensor gateway
Technical Specifications
See why this device is right for you
Ratings: IP68 & IK07
Certifications:
USA & Canada :FCC & ISED, Prop65
European Union: CE, REACH, RoHS
United Kingdom: UKCA
Australia & New Zealand: ACMA
South Africa: ICASA
Others : IP, IK, Bluetooth SIG
Connectivity: Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands.
Supported Bands: B1, B2, B3, B4, B5, B7, B12, B20, B28, B38, B40, B41, B67
SIM Size: Internal Nano 4FF SIM
Bluetooth 5.2 Gateway: Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors for affordable tagged asset management and sensor monitoring
GNSS Constellations: Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS
GNSS Module: Sony CXD5614
Tracking Sensitivity: -149 dBm cold start / -163 dBm hot start
Heartbeat: 4 report every 12 hours, for a total of 2 pings per 24-hour cycle
Movement, Stationary-to-Move (S2M): Reports when assets move more that ~20 meters.
Movement, Move-to-Stationary (M2S): Reports when a moving asset stops for more than 5 minutes
Supply Voltage: 5-16V DC
Current Consumption (Sleep Mode): <10uA*, *Average current in lowest power configuration
Battery: 2 x D Cell (3.7V per cell). Batteries not included
Supported Battery Types: Lithium Thionyl Chloride (LTC)
*Please dispose of Lithium batteries in a safe and responsible manner.
Once Daily Location Updates: 10 years
Movement-Based Location Updates: 9 years
Hourly Location Updates: 7 years
Accelerometer: 3-Axis Accelerometer to detect movement, high G-force events, and more
Operating Temperature: -30°C to +60°C
Record Storage: Store weeks of records if device is out of cellular coverage. Storage capacity for over 20 days of continuous 30-second logging.
Antenna: Internal cellular and GPS antenna
LEDs: Diagnostic LED indicates operation status
Size: 224mm Height, 91mm Width, 41mm Depth
Weight: 430g
Firmware Updates: Over-the-air (OTA)
Installation: Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided
Supported Platforms: DIRECTOR, TN360
