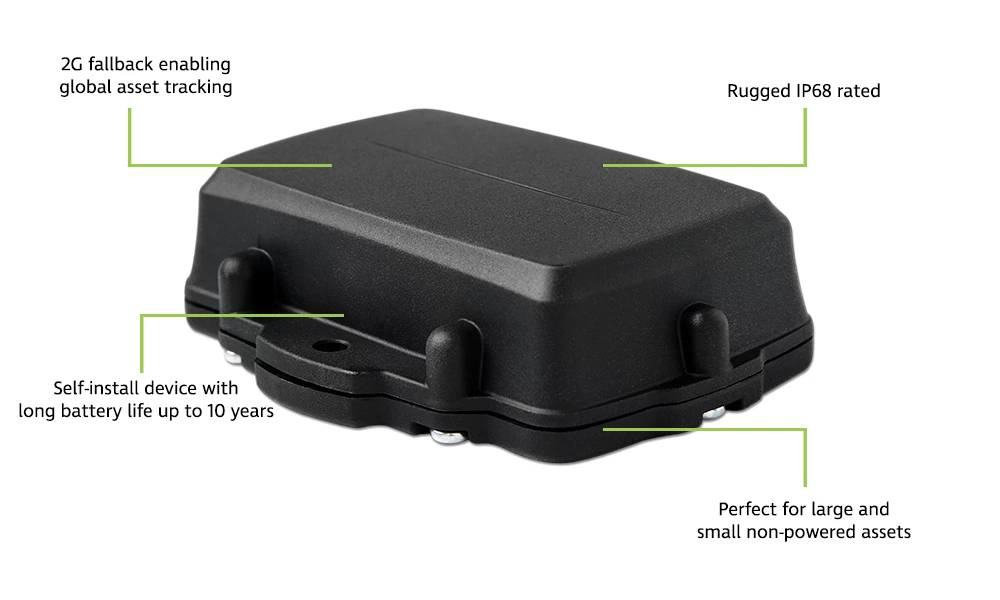

Battery-Powered Asset Tracking
Global self-powered asset tracking
Teletrac Navman’s AT301-G is a GPS-enabled telematics device designed for tracking powered and unpowered assets. With its small footprint, rugged housing, and extended battery life, it ensures visibility of your assets throughout the day or whenever movement occurs. Powered by the Ublox LENA R8 modem, the AT301-G operates on all major global 4G Cat 1bis and 2G bands, providing reliable tracking and asset utilization data when it’s needed most.
The AT301-G is easy to self-install and instantly connects your assets to the TN360 platforom. The flexible device allows you to configure update triggers including stationary-to-move, move-to-stationary or timed modes, and in the event of a theft you can activate ‘Recovery Mode’ to assist in asset recovery. Plus, the device’s replaceable batteries ensure long-term use without needing to purchase a new tracker.
With the AT301-G you will enhance visibility into asset location and usage, so you can improve utilization across projects and sites, reducing hire costs and project delays. The TN360 software also includes digital maintenance and inspection applications so you can streamline maintenance programs and save time locating and maintaining equipment.
AT301-G Features and Benefits
Worldwide tracking of all your unpowered assets
- Smart tracking of powered or unpowered assets - see your entire fleet in one system.
- Ublox LENA R8 Modem operates on all major global 4G Cat 1bis and 2G bands.
- Get reliable global location tracking and cost-effective management for the life of your equipment.
- Long battery life for each device across the fleet depending on the set reporting period.
- Batteries can be easily replaced extending the lifespan of the tracking device.
- Get alerts when batteries are running low or at critical level.
- Ability to self-install across your fleet, with a device where you can replace long-life batteries for a low cost of ownership.
- Receive alerts on equipment events such as movement from sites after hours indicating potential theft.
- Improve on maintenance and scheduling requirements for your assets to reduce wear & tear and reduce unexpected downtime.
- Rugged and waterproof IP68 rated housing offers a discrete and highly durable form-factor that suits a wide range of asset types and sizes.
- Define yards and job sites through geofences and report on equipment location, activity, and utilization by site.
Long Battery Life
Optimized battery performance giving you years of battery life
Ruggedized Device
IP68 rated and built to withstand tough environments
Adaptive Tracking
Flexible update rates based on movement or scheduled updates
2G Network Fallback
Seamless global asset tracking when network coverage is limited
Technical Specifications
See why this device is right for you
Ratings: IP68
Certifications:
USA & Canada :FCC & ISED, Prop65
European Union: CE, REACH, RoHS
United Kingdom: UKCA
Australia & New Zealand: ACMA
South Africa: ICASA
Others : IP, IK, Bluetooth SIG
Connectivity: Ublox LENA R8 Modem operates on all major global 4G Cat 1bis and 2G bands
Supported Bands: B1, B2, B3, B4, B5, B7, B12, B20, B28, B38, B40, B41, B66
SIM Size: Internal Nano 4FF SIM
GNSS Constellations: Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS
GNSS Module: Ublox LENA-R8001M10
Tracking Sensitivity: -149 dBm cold start / -163 dBm hot start
Heartbeat: 2 report every 12 hours, for a total of 2 pings per 24-hour cycle.
Movement, Stationary-to-Move (S2M): Reports when assets move more that ~20 meters.
Movement, Move-to-Stationary (M2S): Reports when a moving asset stops for more than 5 minutes
Supply Voltage: 4 - 16 V DC
Current Consumption (Sleep Mode): <10uA*, *Average current in lowest power configuration
Battery: Replaceable 3x AA
Supported Battery Types:Lithium (LiFeS2)
*Lithium Thionyl Chloride (LTC)
*Please dispose of Lithium batteries in a safe and responsible manner.
Battery Life - Heartbeat, Once daily: ~ 8 years
Movement-Based Location Updates ~ 2.5 years
Hourly Location Updates: ~ 1.5 years
Accelerometer: 3-Axis Accelerometer to detect movement, high G-force events, and more
Operating Temperature: -30°C to +60°C
Record Storage: Store weeks of records if device is out of cellular coverage. Storage capacity for over 29 days of continuous 30-second logging.
Antenna: Internal cellular and GPS antenna
LEDs: Diagnostic LED indicates operation status
Size: 30mm Height, 86mm Width, 108mm Depth
Weight: 120g
Firmware Updates: Over-the-air (OTA)
Installation: Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
Supported Platforms: DIRECTOR, TN360
