Battery-Powered Asset Tracking

A new phase of intelligent self-powered asset tracking

Teletrac Navman’s AT301 is a compact, GPS-enabled device perfect for tracking both powered and unpowered assets. With its rugged housing, extended battery life and modern 4G+ network connectivity, it provides reliable tracking and utilization data, ensuring you know where your assets are when you need it most.

The AT301 is easy to self-install and instantly connects your assets to the TN360 platform. The flexible device allows you to configure update triggers including stationary-to-move, move-to-stationary or timed modes, and in the event of a theft you can activate ‘Recovery Mode’ to assist in asset recovery. Plus, the device’s replaceable batteries ensure long-term use without needing to purchase a new tracker.

With the AT301-G you will enhance visibility into asset location and usage, so you can improve utilization across projects and sites, reducing hire costs and project delays. The TN360 software also includes digital maintenance and inspection applications so you can streamline maintenance programs and save time locating and maintaining equipment.

Patter-Powered Asset Tracker

AT301 Features and Benefits

Keep track of all your unpowered assets

  • Smart tracking of powered or unpowered assets - see your entire fleet in one system.
  • Dual 4G LTE-M1 and NB-IoT network communication capabilities make it reliable and future-proof.
  • Long battery life for each device across the fleet depending on the set reporting period.
  • Batteries can be easily replaced extending the lifespan of the tracking device.
  • Get alerts when batteries are running low or at critical level.
  • Ability to self-install across your fleet, with a device where you can replace long-life batteries for a low cost of ownership.
  • Receive alerts on equipment events such as movement from sites after hours indicating potential theft.
  • Improve on maintenance and scheduling requirements for your assets to reduce wear & tear and reduce unexpected downtime.
  • Rugged and waterproof IP67 rated housing offers a discrete and highly durable form-factor that suits a wide range of asset types and sizes.
  • Define yards and job sites through geofences and report on equipment location, activity, and utilization by site

Long Battery Life

Optimized battery performance giving you years of battery life

Ruggedized Device

IP67 rated and built to withstand tough environments

Adaptive Tracking

Flexible update rates based on movement or scheduled updates

Multiple Applications

Track a range of asset types with this low profile and powerful device

Technical Specifications

See why this device is right for you

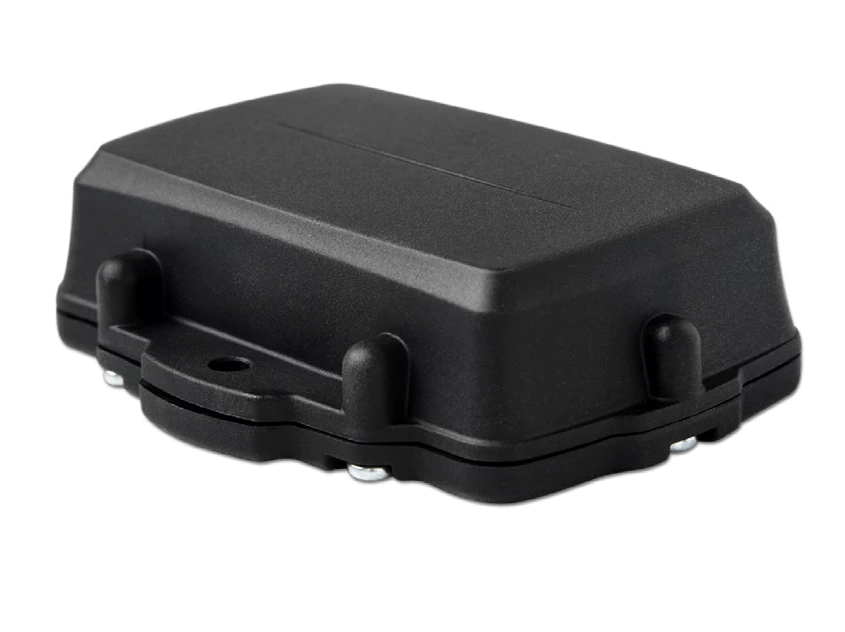

AT301 Image

Ratings: IP67

Certifications: ANZ: RCM



Connectivity: Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands.

Supported Bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66

SIM Size: Internal Nano 4FF SIM

GNSS Constellations: Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS

GNSS Module: Sony CXD5605

Tracking Sensitivity: -147 dBm cold start / -161 dBm hot start

Heartbeat: 1 report every 12 hours, for a total of 2 pings per 24-hour cycle. The time of day when pings occur based on when battery is installed

Movement, Stationary-to-Move (S2M): Reports when assets move more that ~20 meters.

Movement, Move-to-Stationary (M2S): Reports when a moving asset stops for more than 5 minutes

Supply Voltage: 3.3-16V DC

Current Consumption (Sleep Mode): <10uA*, *Average current in lowest power configuration

Battery: Replaceable 3x AA

Supported Battery Types: Alkaline
* Lithium (LiFeS2)
*Lithium Thionyl Chloride (LTC)
*Lithium or LTC recommended for best performance
*Please dispose of Lithium batteries in a safe and responsible manner.

Battery Life - Heartbeat, Twice daily: ~10 years

Movement - Stationary to Move: ~2-3 years

Movement - Move to Stationary: ~5-7 years

Accelerometer: 3-Axis Accelerometer to detect movement, high G-force events, and more

Operating Temperature: -30°C to +60°C

Record Storage: ~25,000 records

Antenna: Internal cellular and GPS antenna

LEDs: Diagnostic LED indicates operation status

Size: 31mm Height, 86mm Width, 108mm Depth

Weight: 161g

Firmware Updates: Over-the-air (OTA)

Installation: Self-installable device. Professional installation available at extra cost

Supported Platforms: DIRECTOR, TN360
